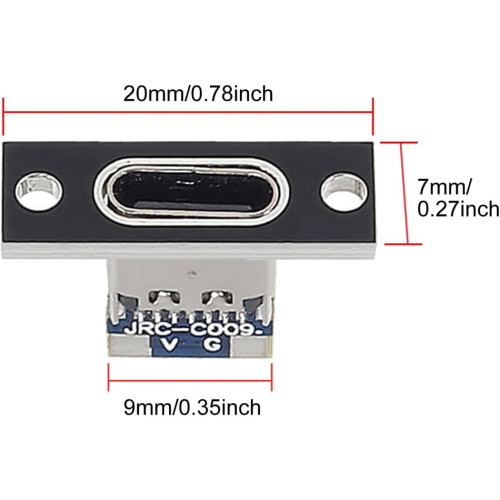

Type-C USB Jack

This USB Type-C (USB-C) jack is a female USB-C port connector designed for panel or PCB mounting, providing a standard USB-C interface for data, power and device connectivity. USB-C is a modern, compact and reversible USB interface widely used across electronics, mobile devices and modern computing hardware.

Key Features:
✔ Physical Interface: USB-C – symmetrical 24-pin connector capable of data transfer, power delivery, and alternate modes such as video.
✔ Reversible Design: the connector can be inserted either way, eliminating orientation frustration.
✔ Mounting: designed for panel or PCB integration in devices and systems. (Common use for USB-C jacks)
✔ Standards Support: USB-C can operate with multiple USB specifications (USB 2.0, 3.x, USB4) depending on implementation.
✔ Capabilities (hardware dependent):
• High-speed data transfer up to multiple Gbps (via USB3.x/USB4)
• Power Delivery (PD) up to tens or hundreds of watts (when supported)
• Alternate Modes like DisplayPort or Thunderbolt with appropriate hardware.

What It Is:
USB-C (also called USB Type-C) is the latest USB connector standard designed to replace older USB interfaces with a universal, easy-to-use connector for devices ranging from phones and laptops to peripherals and embedded systems.

Typical Uses:
✔ Panel or enclosure USB-C ports for devices and electronics.
✔ PCB USB-C interfaces in consumer, industrial and embedded electronics.
✔ Charging and data connectivity for phones, tablets, laptops and accessories.
✔ High-speed peripherals such as external SSDs, displays or docking systems.

Benefits:

• Reversible and user-friendly connection.

• High data speeds and power support (depending on implementation).

• Broad compatibility across modern USB-C devices.
