- Stock: Out Of Stock
- Brand: Taxnele
- Reward Points: 50
- Model: DF-96DK
- Weight: 0.26kg
- Product Code: 6590

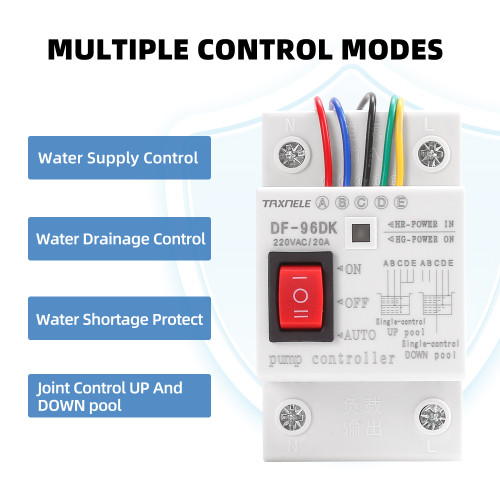

Automatic DF-96DK Water Level Controller with 3 Sensors, Overflow and Dry-Run Protection
Automate and secure your water systems with the reliable Taxnele DF-96DK Water Level Controller! This powerful and intelligent DIN rail mounted module automatically controls water pumps based on the level in a tank or cistern. Using three electrode sensors, it detects low, normal, and high water levels, turning the pump on or off accordingly. With a load capacity of up to 20A at 220V AC, it is suitable for a wide range of applications – from domestic water tanks and agricultural irrigation systems to industrial installations. The controller offers key protections, such as dry-run protection for the pump (in case of no water) and overflow protection, ensuring safety and long equipment life. With an easy-to-install design and clear instructions, the DF-96DK is the ideal solution for saving time, energy, and worry.
The DF-96DK Water Level Controller Switch is designed for industrial use, featuring a max current of 10A (with 30A delay support) and a working voltage of AC220V/50HZ. It ensures reliable liquid level detection through its advanced sensor probes and auto pump control functionality. The compact design (126*88*51mm) and DIN rail mount installation make it easy to integrate into various systems. With IP53 protection and low power consumption (≤2W), it provides durable performance in demanding environments.

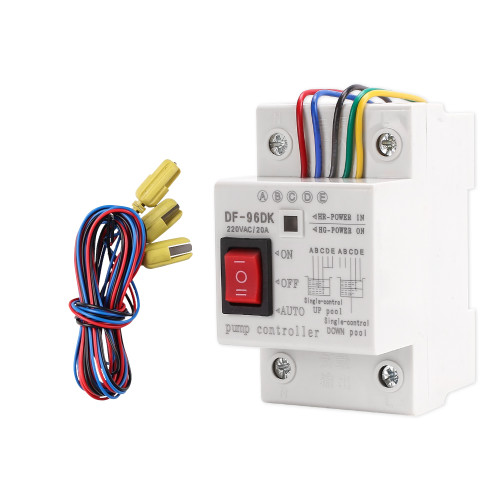

Package include:
1pcs Automatic Water Level Controller Switch
3pcs 200CM Sensor
Single-control UP pool (water storage) installation instructions shown in figure 1
A(red)—Upper water level control point. When water level gets to A point,
the probe touch water and controller can stop the pump by auto.
B(blue)—Lower water level control point. When water level gets off B point,
the probe out of reach water and controller can start the pump by auto.
C(black)—Should be placed in bottom of pool as the common line.
D(green) and E(yellow)are connected with C (black).
Single-control DOWN pool(drain water)installation instructions shown in figure 2.
E—Upper water level control point. When water level gets to E point,
the probe touch water and controller can start the pump by auto.
D—Lower water level control point. As liquid level gets off D point,
