The Taxnele TVP1-60 is an automatic voltage protection device designed to disconnect electrical loads when the mains voltage becomes excessively high or low. Once the supply voltage returns to the normal range, the device automatically restores power after a preset delay.
The protector operates at a nominal voltage of 230V AC and a frequency of 50/60 Hz, with support for loads up to 63A. It is designed for installation inside electrical distribution panels using a standard 35 mm DIN rail.

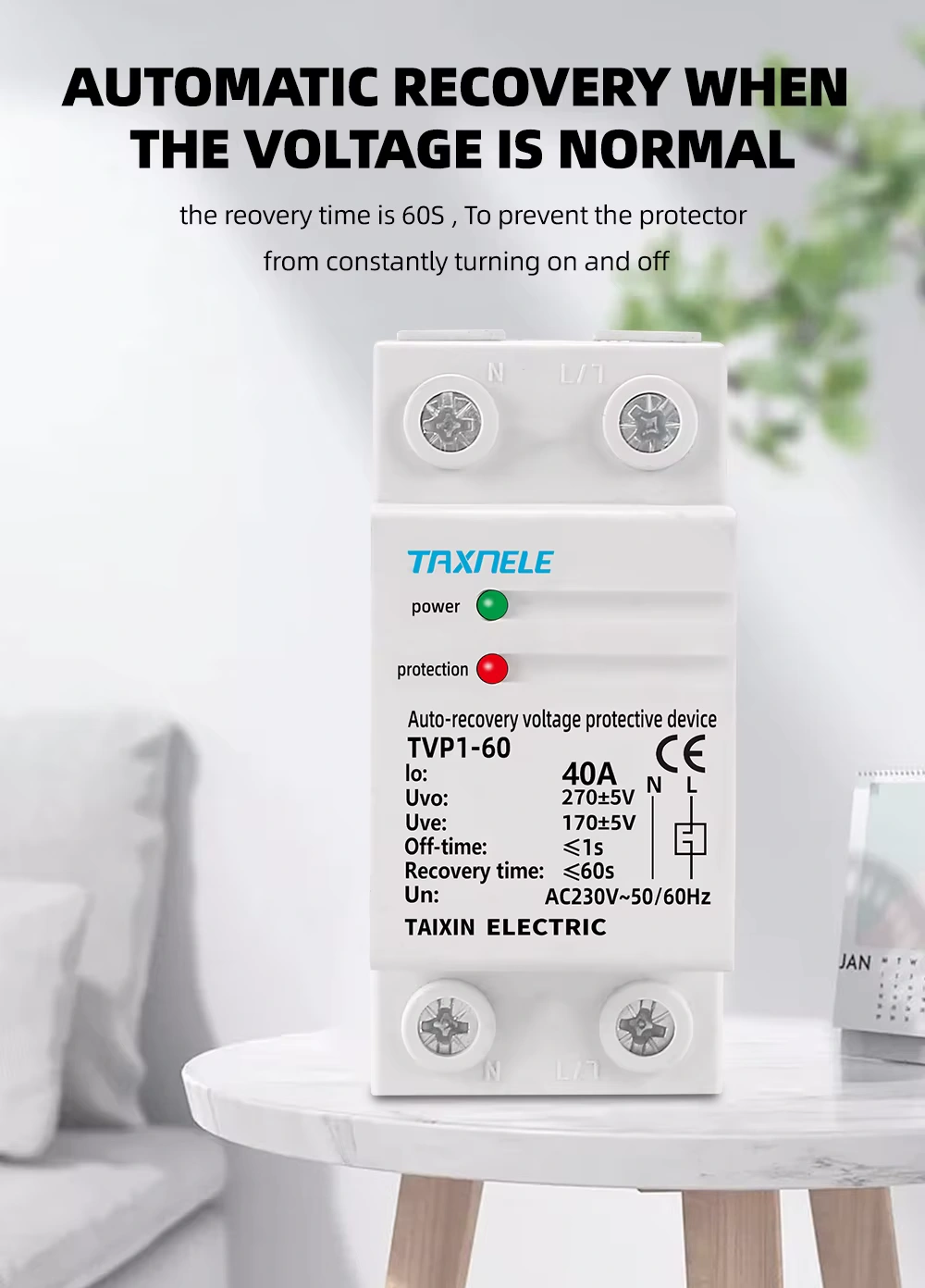

Under normal conditions, the device maintains the output when the supply voltage is within the 175–270 VAC range. When the voltage rises above approximately 270 VAC or drops below approximately 170 VAC, the protector disconnects the load in less than 1 second. After the supply voltage returns to normal, power is automatically restored after a delay of up to 60 seconds.
The TVP1-60 features LED status indicators. The green indicator shows normal voltage, while the red indicator indicates an overvoltage or undervoltage condition.
Key features:
- Manufacturer: Taxnele
- Model: TVP1-60
- Type: Automatic overvoltage and undervoltage protector
- Rated voltage: 230V AC ±10%
- Operating frequency: 50/60 Hz
- Maximum current: 63A
- Maximum load power: 8.8 kVA
- Normal voltage range: 175–270 VAC
- Overvoltage trip threshold: >270 VAC ±5V
- Undervoltage trip threshold: <170 VAC ±5V
- Disconnection time: <1 s
- Automatic recovery time: <60 s
- Power consumption: <2W
- Electrical life: up to 100,000 switching operations

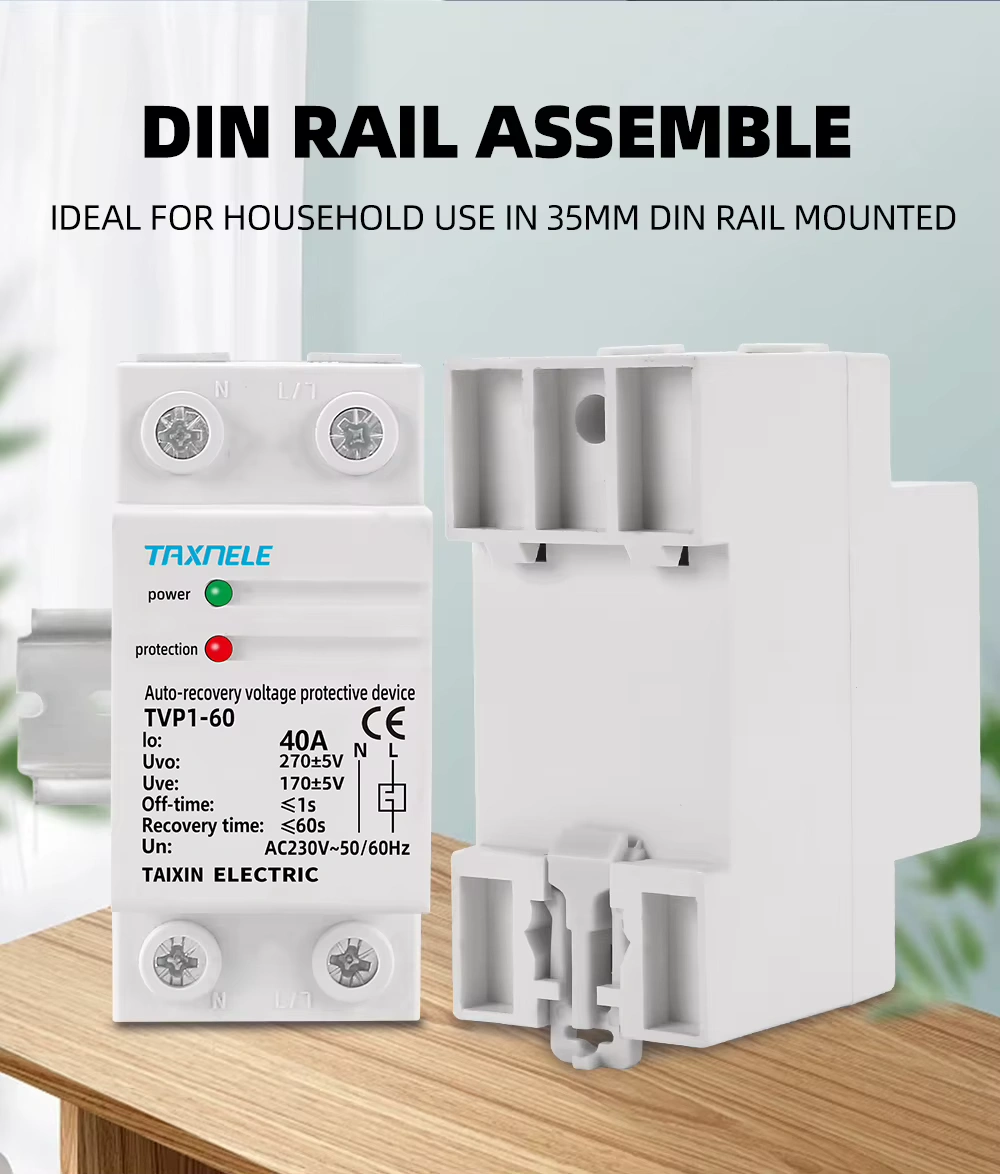

- Mounting: 35 mm DIN rail

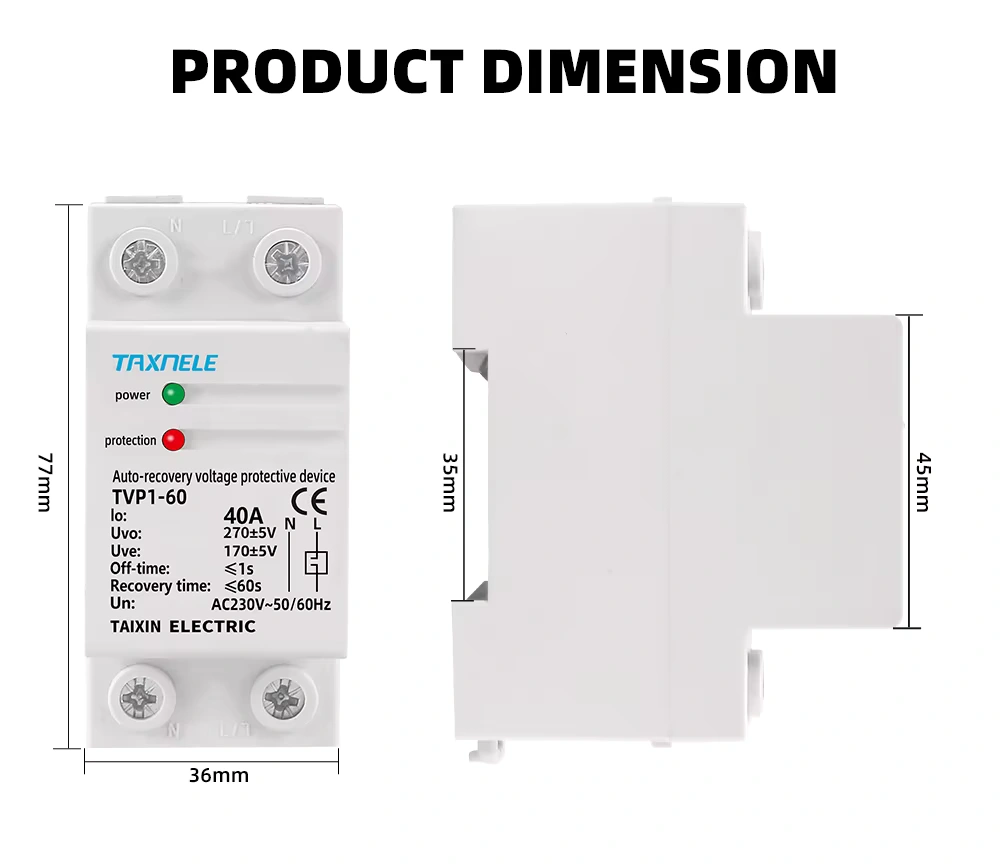

- Dimensions: 35 × 70 × 77 mm
- Indicator: LED
- Weight: approximately 120 g
Applications:

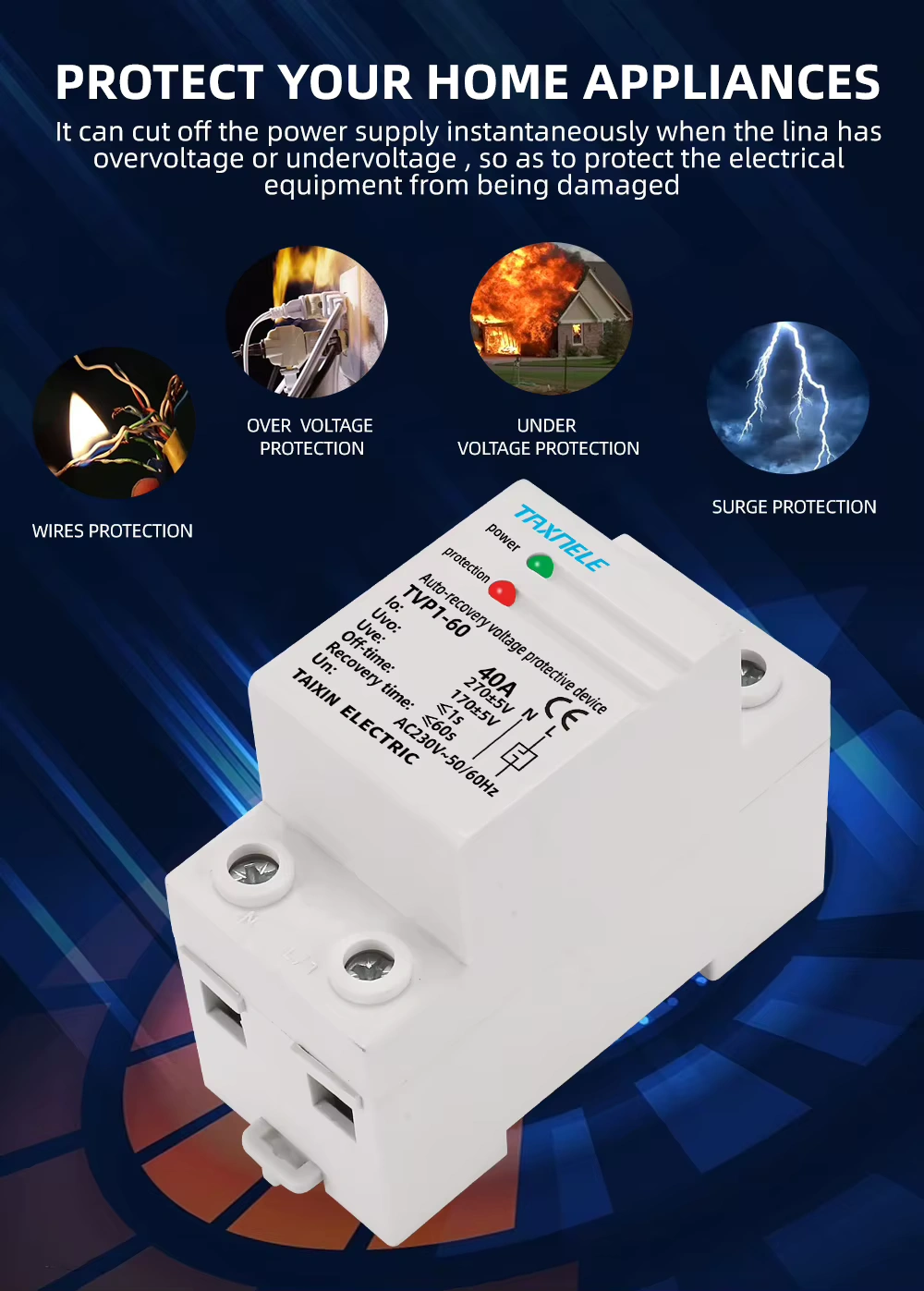

The Taxnele TVP1-60 is suitable for electrical distribution panels in homes, offices, workshops, shops and other installations where automatic disconnection is required when mains voltage moves outside the safe operating range.
It can be used to protect electrical appliances and equipment such as refrigerators, televisions, computers, air-conditioning systems, pumps, electric motors and other loads that may be affected by unstable mains voltage.
Main applications:
- Overvoltage protection
- Undervoltage protection
- Automatic power recovery
- Electrical panel protection
- Household appliance protection
- Electronic equipment protection
- Residential and industrial electrical installations
The TVP1-60 provides a practical solution for automatic protection of electrical loads against unstable mains voltage, combining automatic disconnection, LED status indication and automatic power recovery after voltage normalization.
