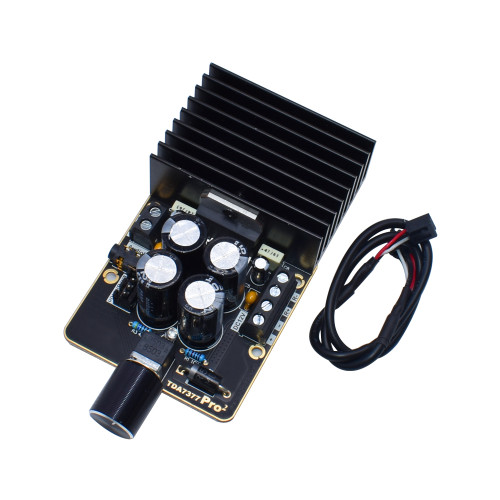

This audio amplifier module is based on the popular TDA7377 IC, designed for high-performance stereo audio applications with low distortion and high efficiency.
It delivers up to 2×30W output power with proper power supply and 4Ω speakers, making it ideal for compact audio systems and DIY builds.
The module operates within a DC 9–18V range (12V recommended) and supports 4–8Ω speakers.
High-quality components and integrated heatsink ensure stable performance and clear sound output.
Key Features:
✔️ TDA7377 Class AB amplifier chip
✔️ Output power: 2 × 30W
✔️ Input voltage: DC 9–18V
✔️ Stereo output (L/R channels)
✔️ Supports 4–8Ω speakers
✔️ HiFi audio quality
✔️ Compact design with heatsink
Technical Specifications:
Chip: TDA7377
Amplifier type: Class AB
Input voltage: DC 9–18V
Output power: up to 2×30W
Recommended power supply: ≥12V / ≥4A
Speaker impedance: 4–8Ω
THD: ~0.03%
SNR: >100 dB
Advantages:
Clear and powerful audio output
Ideal for car and home audio systems
Easy to install and use
Reliable and stable performance
Great for DIY audio projects
