- Stock: 49
- Brand: OEM
- Reward Points: 3
- Model: R16-503/AD
- Product Code: 7005-006
Reliable 16mm Power Key with Red LED for Control Panels and Equipment

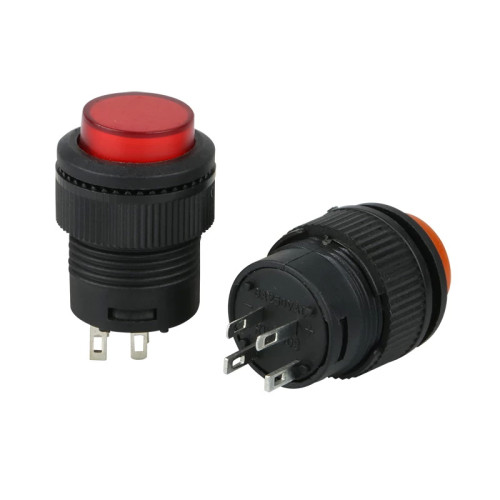

The R16-503/AD button is a versatile and reliable 16mm push-button switch featuring a self-locking (ON/OFF) mechanism and built-in visual indication. Its red cap with an integrated 12V LED lamp provides clear status signalling, making it a perfect choice for power state indication in various equipment. Built for durability, it boasts a mechanical life of 200,000 cycles and an electrical life of 50,000 cycles, ensuring reliable long-term performance.
This standard 16mm switch is an ideal component for a wide array of applications – from powering desktop computers, servers, and audio/video devices, to industrial control panels, DIY projects, and security systems. With a rating of up to 1.5A at 250V AC and an IP40 protection degree, it offers great functionality and safety. Whether you are a service technician, equipment manufacturer, or a hands-on DIY enthusiast, the R16-503/AD provides a straightforward and effective power control solution with clear visual feedback.
| Model number | 16mm R series |
| Mounting dimensions | Φ16 |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min |
| Dielectric strength | 2000Vac, 50Hz for 1min |
| Mechanical Life | 2x105 cycles |
| Electrical life | 5x104 cycles |
| IP degree | IP40 |
| Operation temperature | -25 to 55°C |
| Operation humidity | 45 to 85% RH, no-condensation |
| Alias name | 16mm R series push button switch, pushbutton |
