- Stock: 104
- Brand: Taxnele
- Reward Points: 180
- Model: TXATS-100II
- Weight: 0.64kg

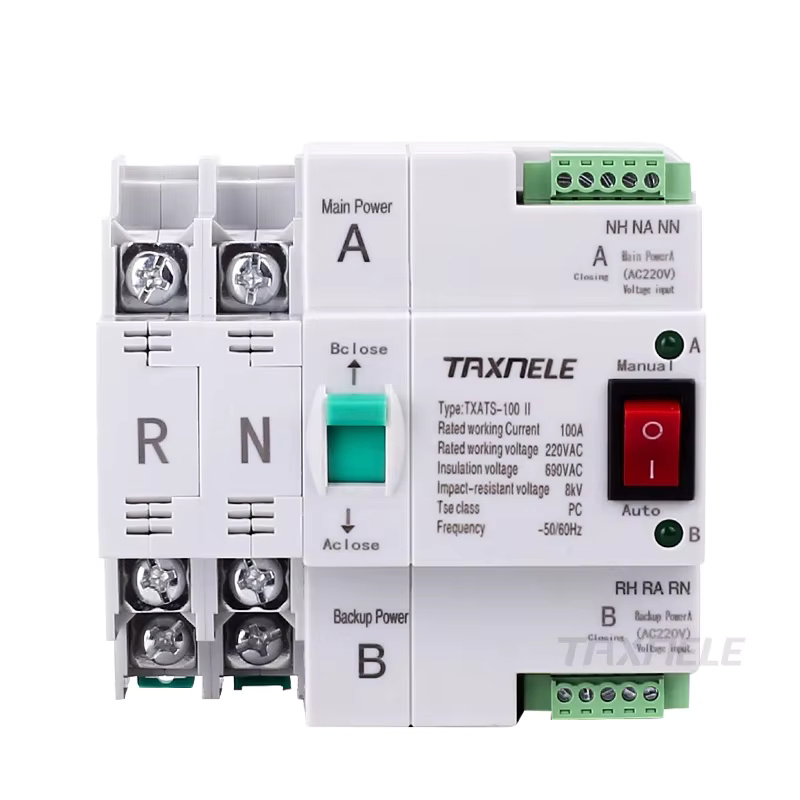

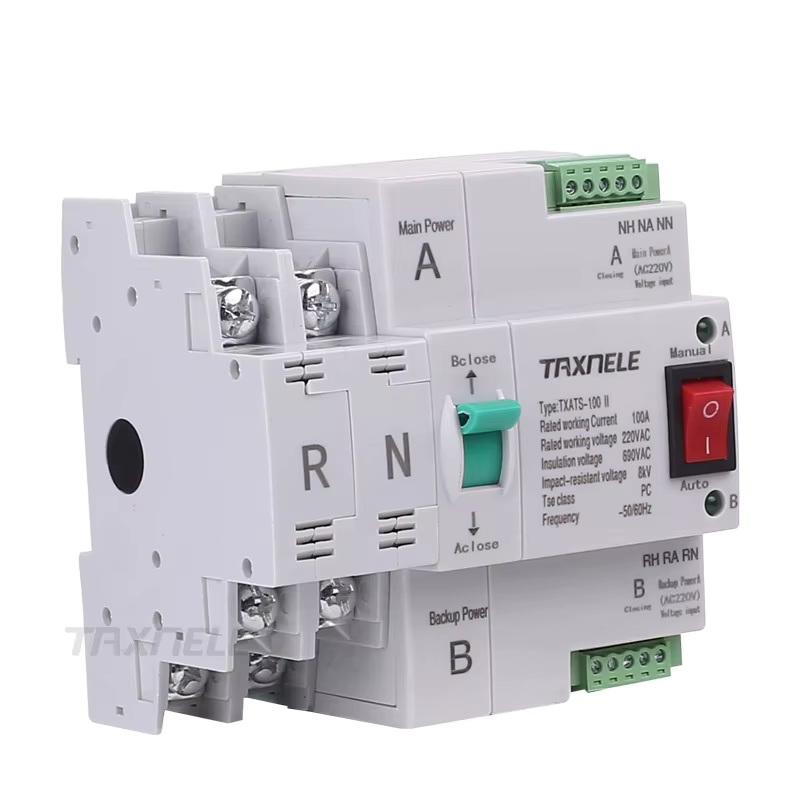

Automatic Transfer Switch with Built-in Overload Protection for High-Current Single-Phase Systems
This Automatic Transfer Switch (ATS) with integrated miniature circuit breaker (MCB) is designed to automatically switch electrical supply between two power sources — typically a primary (grid) and a secondary (backup) — for single‑phase systems up to 100 A. It does not directly control or start a generator but monitors both sources and changes over when needed to maintain power continuity.
Key Features
Automatic Transfer Switch (ATS) with built‑in MCB protection for overload and short‑circuit safety.

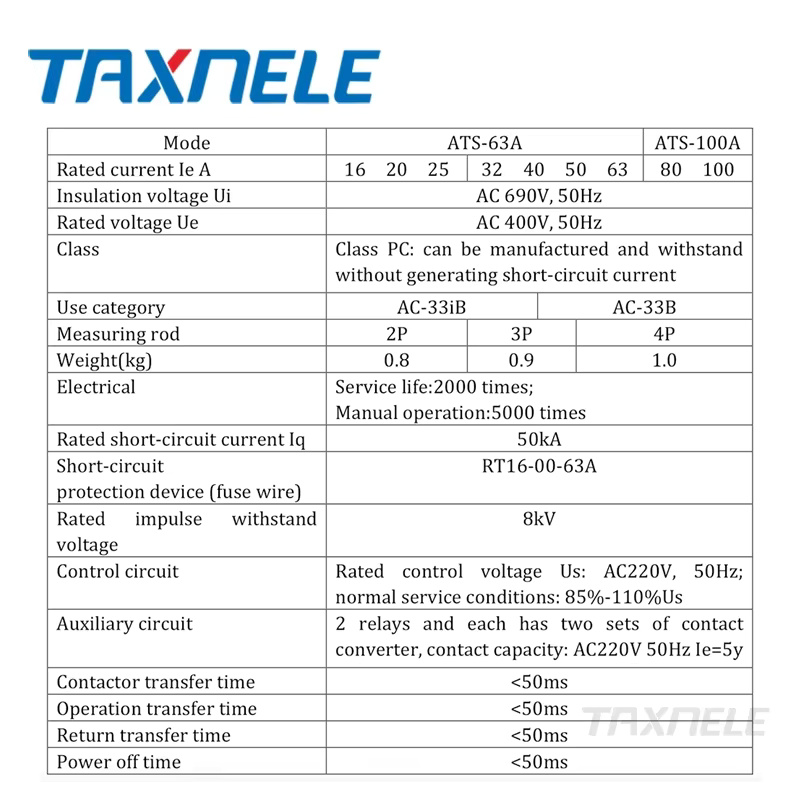

Rated Current: 100 A, suitable for heavier loads in residential, commercial, or light industrial settings.

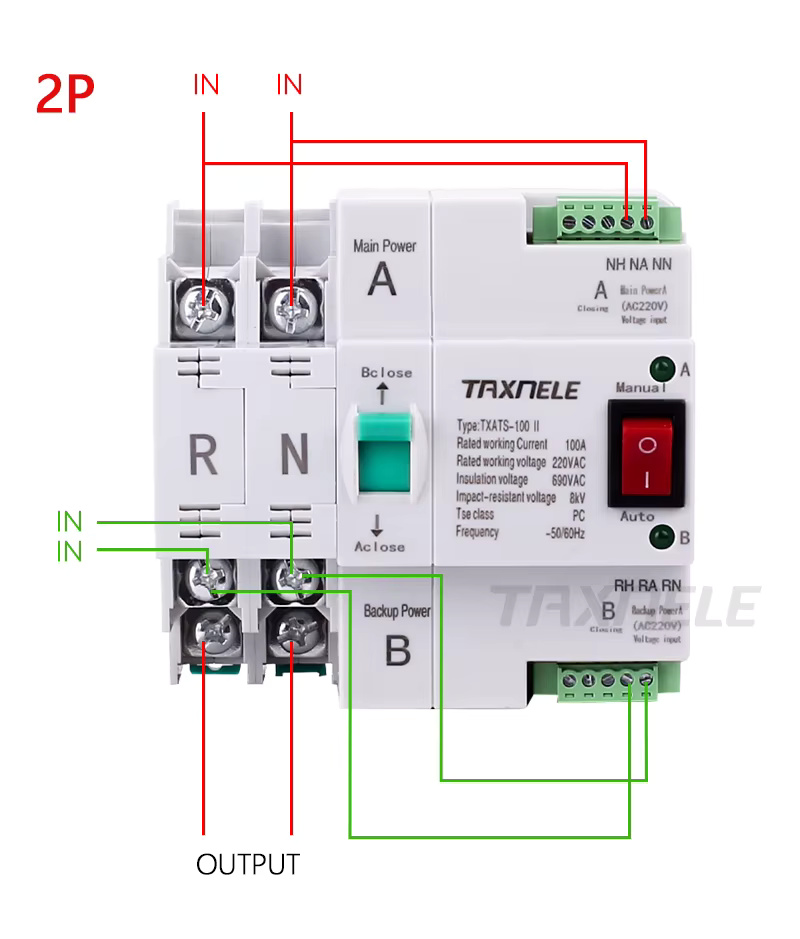

2‑Pole (2P) Design: switches both live (L) and neutral (N) lines in a single‑phase AC system (typically 230 V).
Automatic Switching: constantly monitors two inputs and automatically transfers load from main to backup power when needed.
Fast Transfer Time: usually under ~4 s, minimizing the disruption of power to connected loads.
MCB Circuit Breaker: integrated protection to safeguard the circuit against overloads and fault currents.

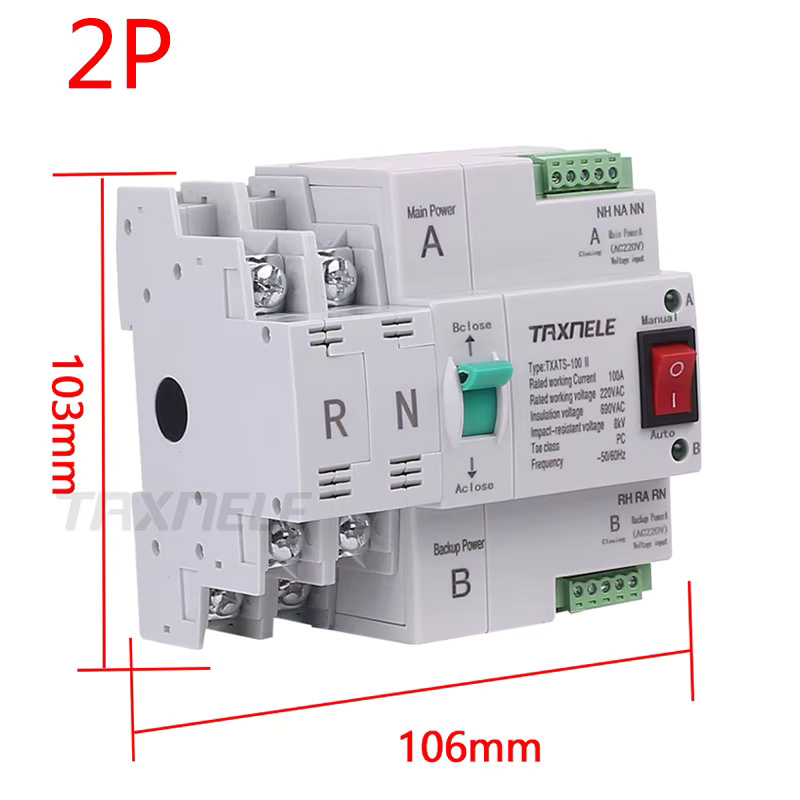

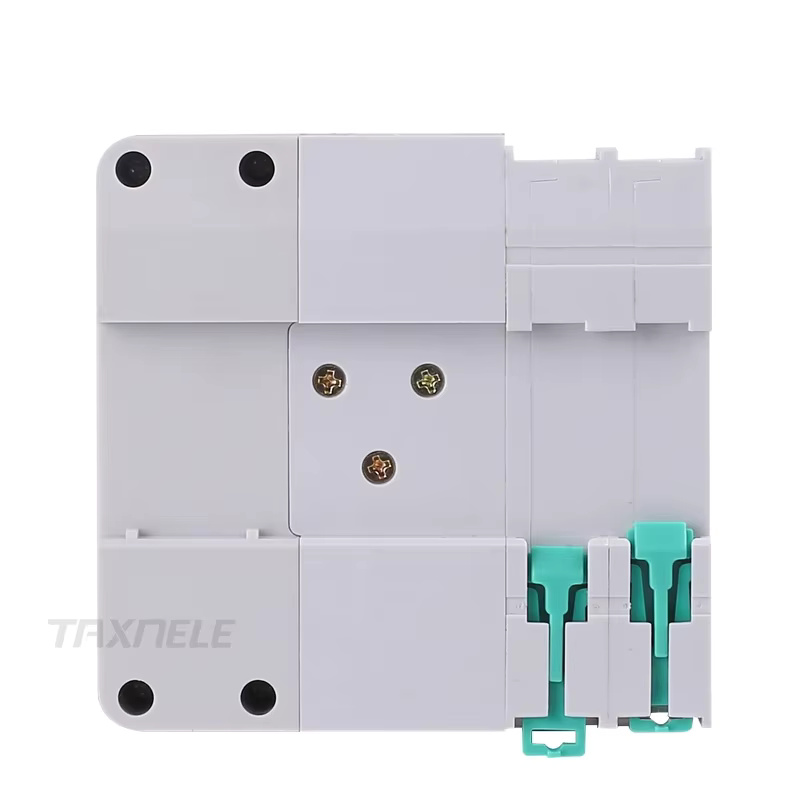

DIN Rail Mounting: standard 35 mm DIN rail installation for easy integration into electrical distribution panels.
How It Works
Under normal conditions, the ATS connects the load to the primary power source. If the primary source fails or goes outside acceptable limits, the ATS automatically switches to the backup source to keep the load energized. Once the primary supply returns to normal, the device switches the load back.
Why Use It
Reliable power backup — for critical circuits such as lighting, pumps, HVAC systems and more.
Enhanced safety — integrated circuit breaker protection reduces risk of electrical faults.
Easy installation — DIN rail leverages standard electrical panel layouts.
