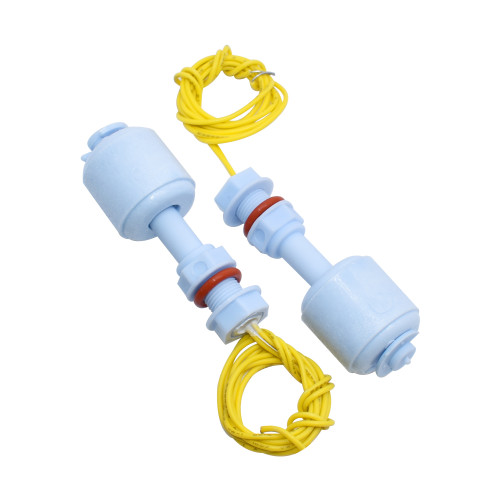

Liquid Water Level Sensor Horizontal Float Switch 52mm PP

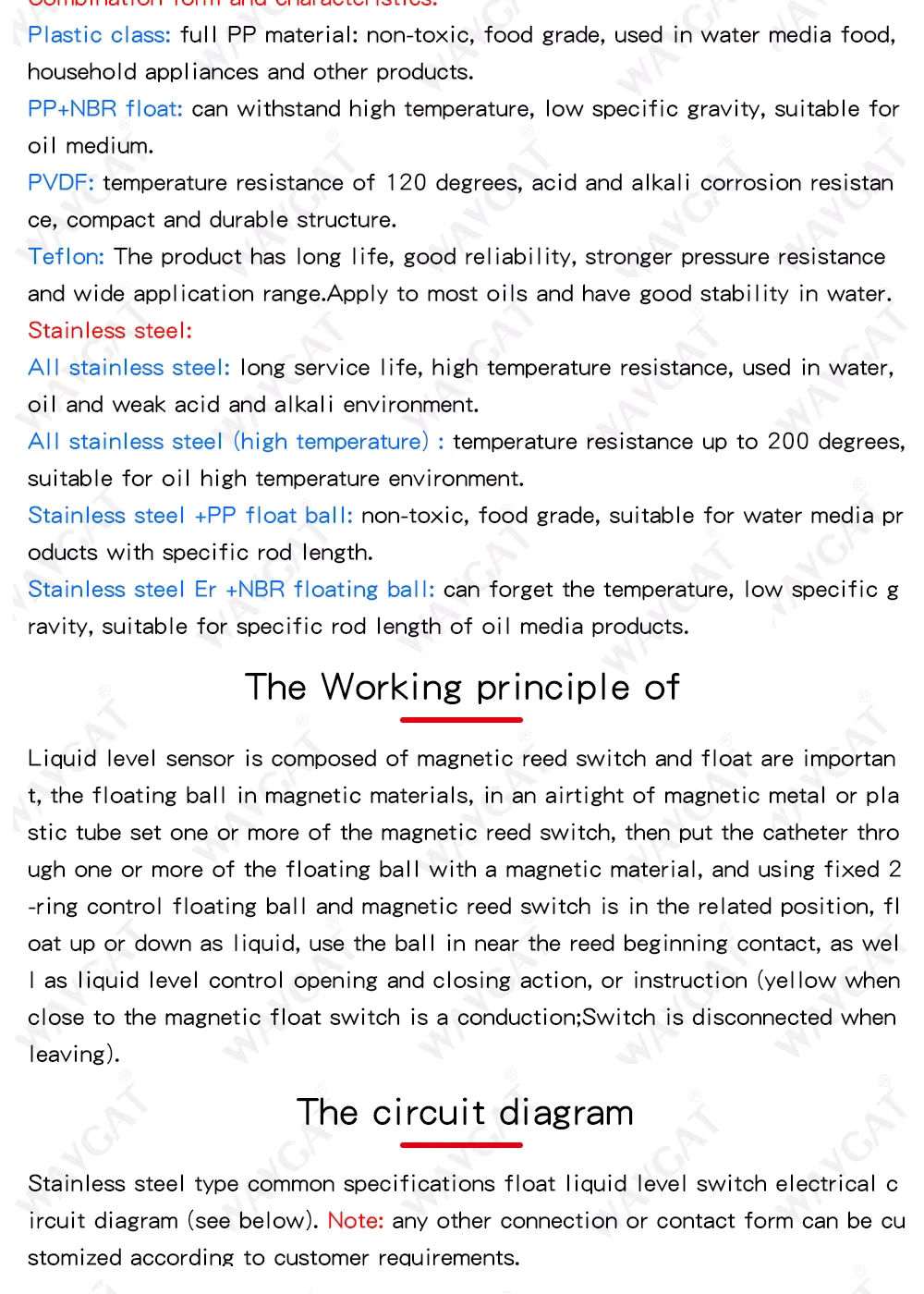

This horizontal float switch is designed to detect and control liquid levels in tanks and containers. It operates using a magnetic reed switch mechanism, where the float moves with the liquid level and changes the switch state accordingly.

Made of polypropylene (PP), the sensor is resistant to corrosion and suitable for water, oils, and various liquids. Its compact design ensures easy installation and reliable operation in different environments.

When the liquid reaches a specific level, the float activates the internal switch, allowing control of pumps, alarms, or other devices.

 Key Features:

• ✔️ Horizontal mounting design

• ✔️ Float-type level detection

• ✔️ Corrosion-resistant PP material

• ✔️ Simple and reliable operation

• ✔️ Easy installation

• ✔️ Long service life

 Technical Specifications:

• Sensor type: magnetic reed switch

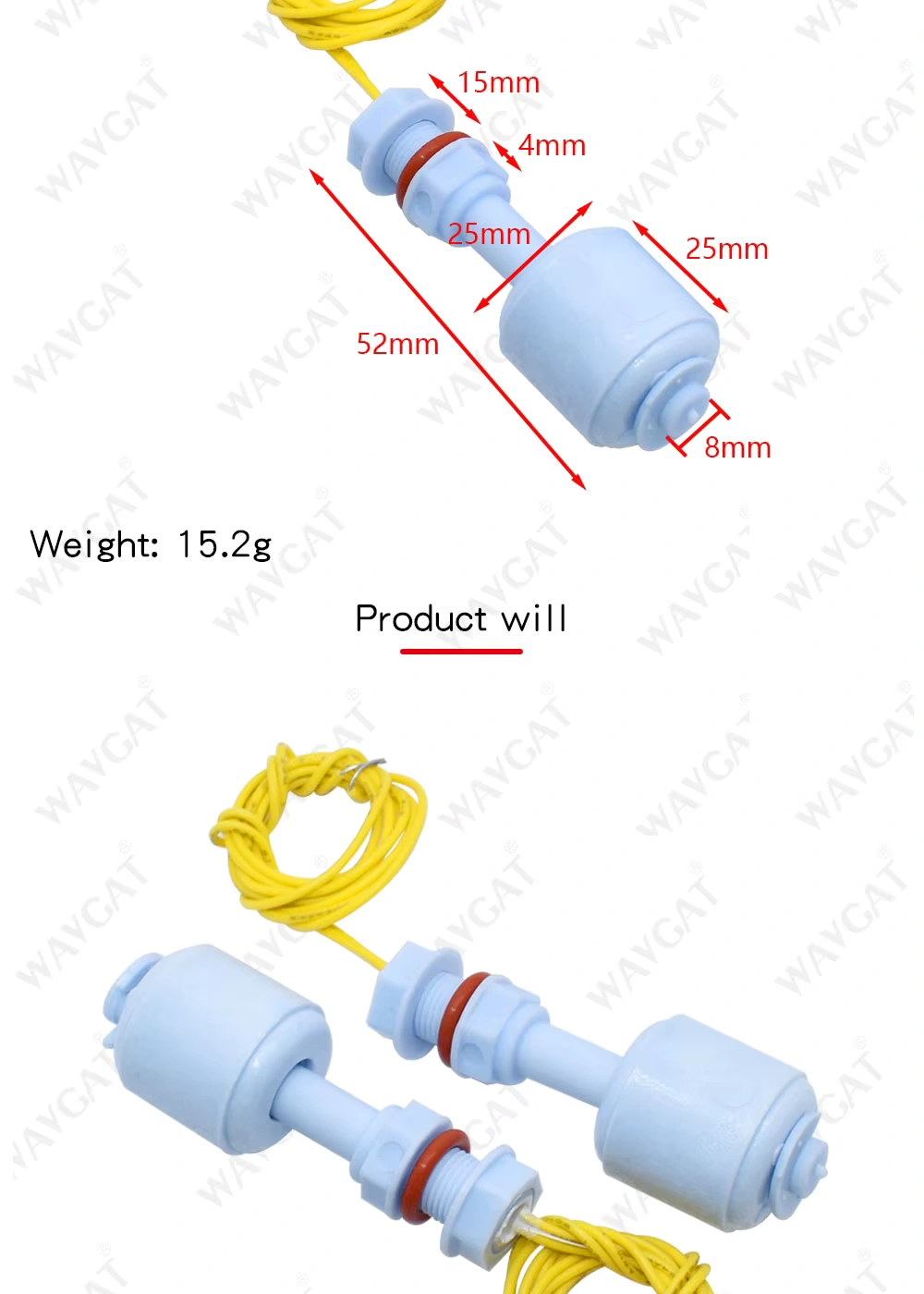

• Length: ~52 mm

• Max voltage: up to ~110V DC

• Max current: ~0.5–1A

• Power rating: ~10W

• Temperature range: -10°C to +80°C

• Material: polypropylene (PP)

• Mounting: threaded (typically M10)

• Cable length: ~40 cm

 Advantages:

• Simple and highly reliable design

• No complex electronics required

• Ideal for pump automation

• Resistant to chemicals and moisture

• Compact and versatile
