- Stock: 110
- Brand: Taxnele
- Reward Points: 34
- Model: DH48S-2Z
- Weight: 0.21kg
- Product Code: 6589
DH48S-2Z Time Relay with 2 Changeover Contact Groups, 8 Pins and 0.01s–99h99m Timing Range
The Taxnele DH48S-2Z is a digital time relay with an on-delay function, designed for automation and electrical circuit control where switching must occur after a preset time interval. The relay operates from an AC 220V supply and features two changeover relay contact groups for controlling electrical circuits according to the configured timing.

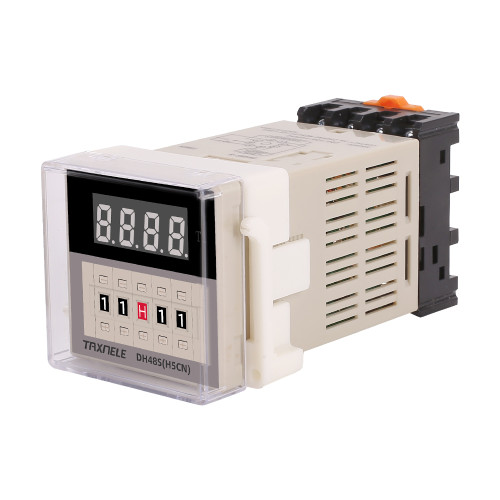

The DH48S-2Z features 8 terminals and is supplied with a matching mounting socket. The timing range can be adjusted from 0.01 seconds up to 99 hours and 99 minutes, allowing the relay to be used for both short delay functions and longer automated processes.

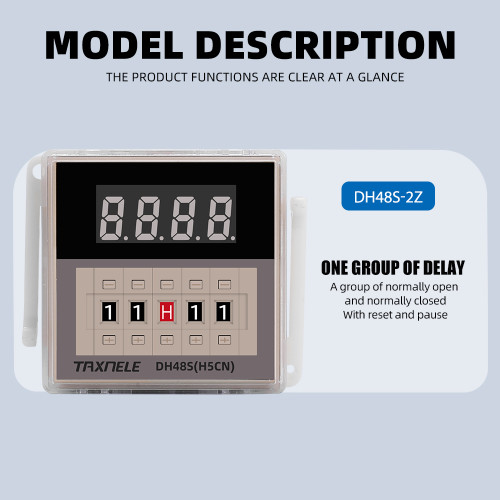

The relay features a digital LED display for displaying the configured timing parameters. When power is applied, the relay executes the selected timing function and then switches its output contacts according to the configured delay.

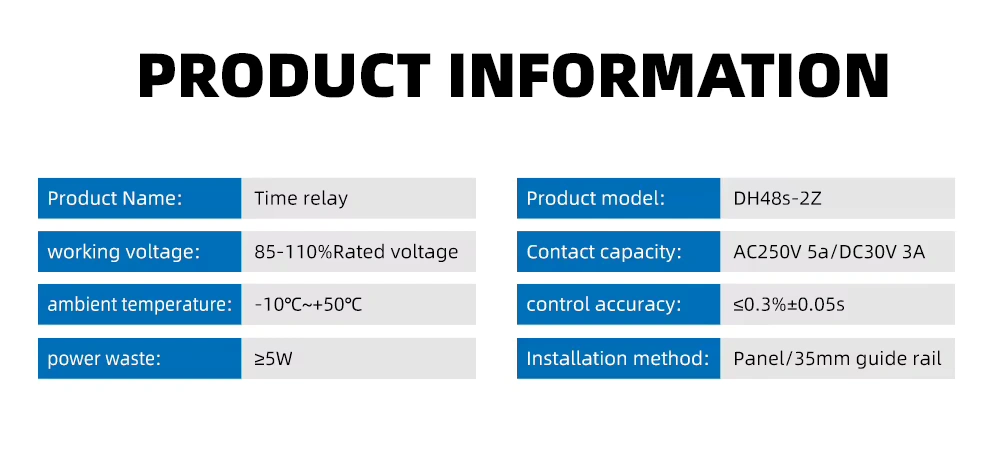

Key features:
- Manufacturer: Taxnele
- Model: DH48S-2Z
- Type: Digital time relay
- Supply voltage: AC 220V
- Frequency: 50/60 Hz
- Function: On-delay
- Contact configuration: DPDT, 2NO + 2NC
- Number of terminals: 8 pins
- Contact rating: AC 250V / 3A
- Timing range: 0.01s–99h99m
- Display: 4-digit LED display

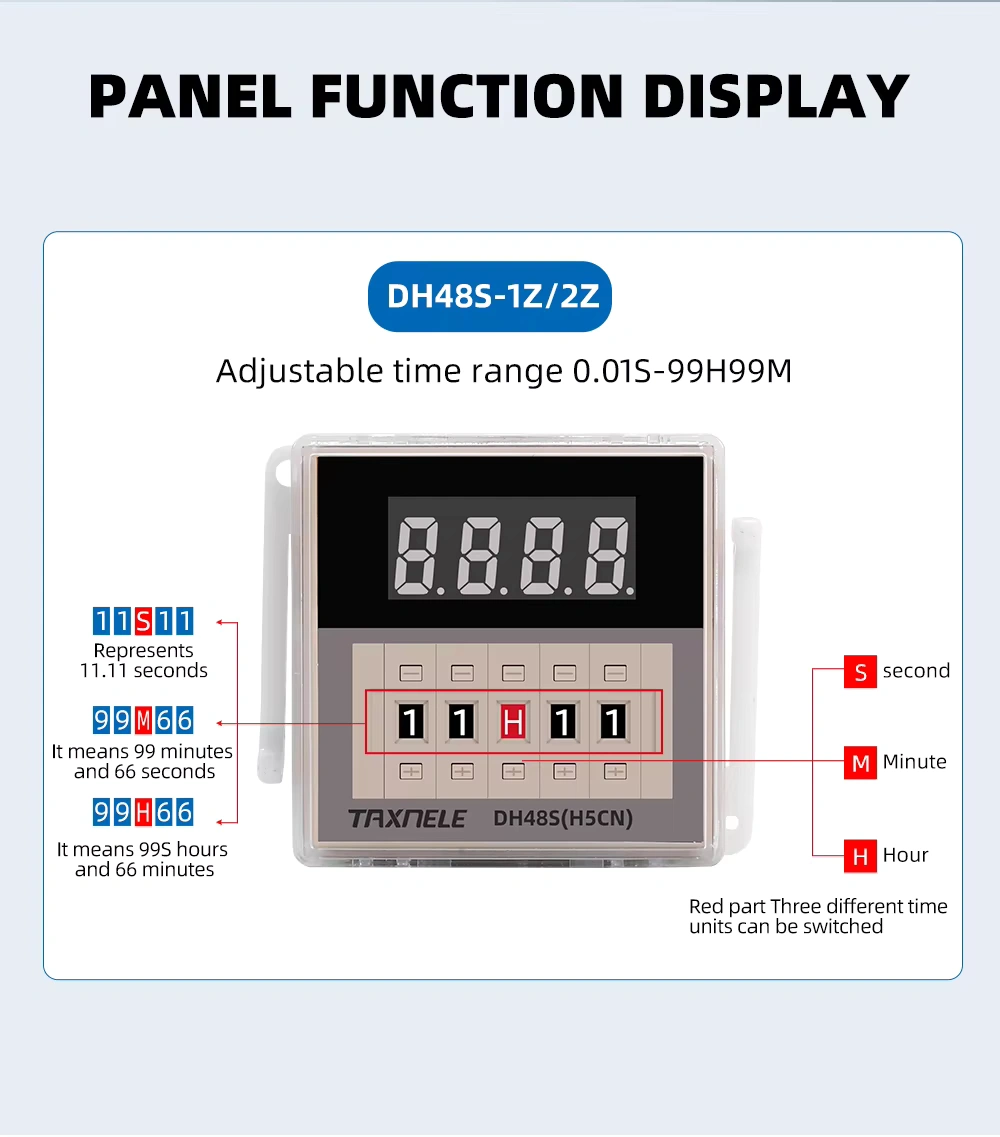

- Time setting: Digital/coded setting according to the selected time range
- Mounting: Panel / mounting socket
- Package contents: Time relay + socket
- Materials: Plastic, metal and electronic components

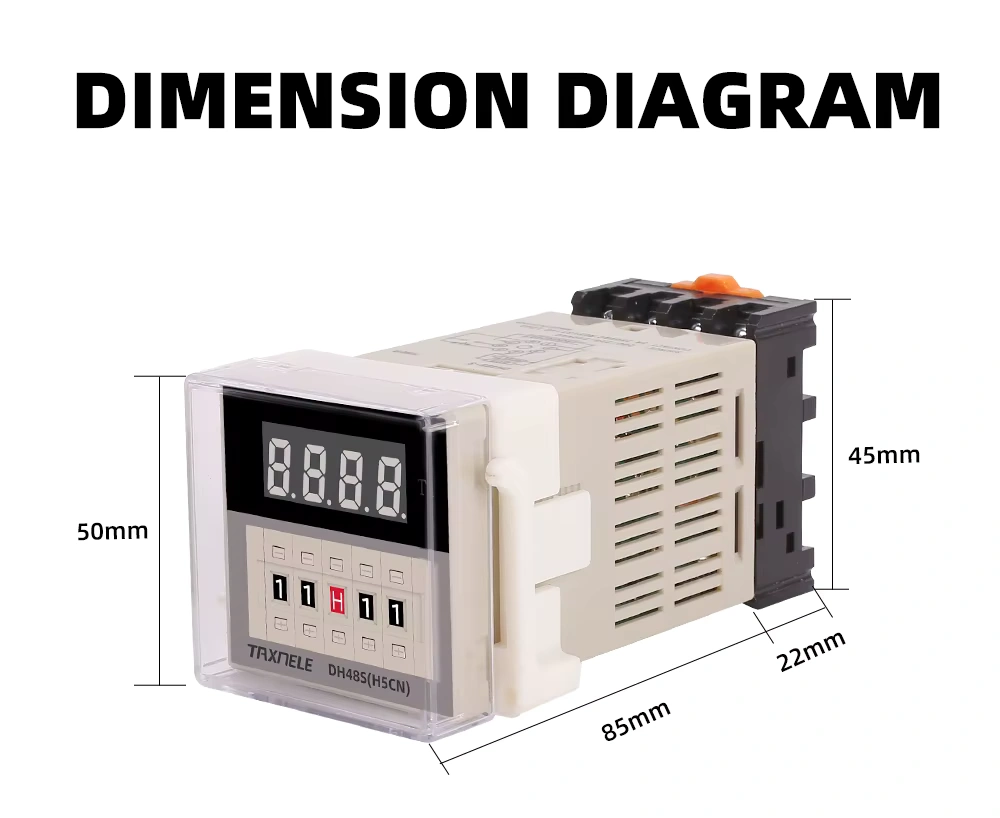

- Mounting hole size: approximately 45 × 45 mm for the relay
- Package weight: approximately 135 g according to the product data
The Taxnele DH48S-2Z is suitable for various automation and electrical control applications, including control of contactors, relays, lighting, motors, pumps and other electrical loads where automatic switching after a preset delay is required.
Its wide adjustable timing range and digital display make the DH48S-2Z a practical solution for control systems, laboratory projects, electrical control panels and automated electrical installations.
