AM medium wave antenna

AM medium wave antenna

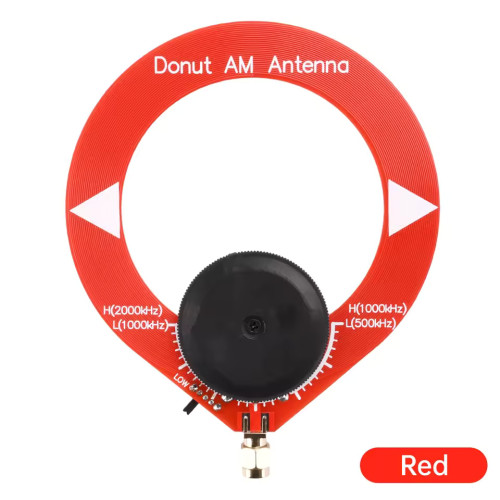

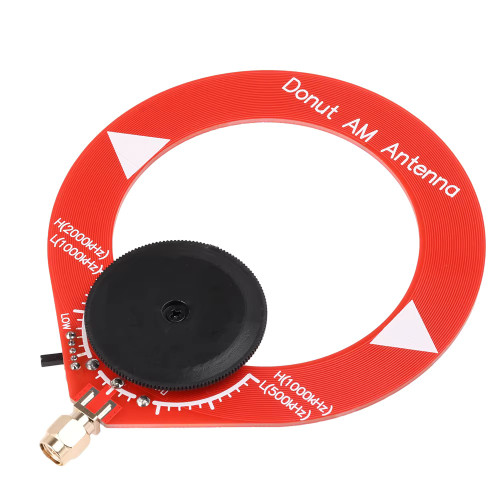

Enhance your listening experience of favorite AM radio stations with this specialized and compact Medium Wave (MW/AM Band) antenna. With its red color and circular "donut" shape, it is designed to provide stable reception in the 500 kHz to 2 MHz frequency range, where most AM broadcasters operate.

Key Features & Benefits:

• Targeted AM Reception: Specifically designed for the Medium Wave (MW) broadcast band, making it far more effective than the standard or built-in antennas of most radios.

• Omni-Directional Coverage: The circular design ensures even signal pickup from all directions. There's no need to rotate or point the antenna to find the best signal.

• Compact & Space-Efficient Design: The "donut" form factor is much smaller than traditional long-wire AM antennas. It takes up minimal space on a desk or next to your radio and is perfect for use in apartments or while traveling.

• Easy Connection: Equipped with a standard SMA male connector (pin type) that plugs directly into the corresponding antenna input on many modern receivers, especially those with a "ferrite rod" or similar input.

• Tuning Capability: The design often includes a fine-tuning capability (via variable capacitance), allowing you to optimize reception for a specific station and increase signal clarity.

Technical Specifications:

• Type: Medium Wave / AM Band Antenna

• Frequency Range: 500 kHz – 2000 kHz (0.5 MHz – 2 MHz)

• Color: Red

• Connector: SMA Male (Pin)

• Design: Compact, Circular (Omni-Directional)

Why a Dedicated AM Antenna is Needed?
Often, the built-in antennas in radios are a compromise and cannot pick up weak or distant AM stations well. This external antenna significantly increases the strength and quality of the received signal, reduces noise, and allows for the discovery of more stations. It is indispensable for radio enthusiasts who enjoy listening to distant AM stations at night or live in areas with poor coverage.

1. Omnidirectional coverage: The design of circular antennas often gives them good omnidirectional radiation characteristics, which means that the signal transmission or reception in all directions on the horizontal plane is relatively uniform, suitable for broadcasting and multi-directional communication needs.

2. Broadband capability: These types of antennas can often cover a wide frequency range, including both medium frequency (MF) and high frequency (HF) bands, suitable for receiving or transmitting signals from multiple frequency bands.

3. Space efficiency: Due to its unique circular design, the donut antenna occupies less space compared to traditional long line antennas, making it easy to install and deploy in space constrained environments.

4. Easy to install and adjust: Most designs are easy for users to install on their own, and some models may provide tunable components that allow users to adjust the operating frequency as needed to optimize the receiving or transmitting effect.

5. Multi functional use: Small in size, easy to carry, using variable capacitance tuning function to improve signal reception effect, very suitable for use with peacock stone receivers.

Red: AM medium wave antenna

Frequency range: 500kHz-2000kHz

Interface: SMA needle interface

Product Description:

The set of circular antennas consisting of medium wave ring (red) and short wave ring (blue) is a narrowband high impedance resonant antenna (Hi-Z). Therefore, when connected to a peacock receiver, the medium wave and short wave circular rings should be connected to the high impedance antenna input terminal (Hi-Z) of the peacock. Incorrect connection can cause impedance mismatch of the antenna, resulting in antenna detuning and inability to operate.

Sweet donut medium and short wave antenna set, one each, small loop antenna, circular antenna, mini loop, radio antenna, tuning loop. This antenna is a narrowband high impedance resonant antenna that needs to be used in conjunction with a high impedance input port of a peacock receiver, otherwise it may cause antenna detuning and malfunction!
