- Stock: 110
- Brand: Taxnele
- Model: TXM05
- Weight: 0.13kg
- Product Code: 6592

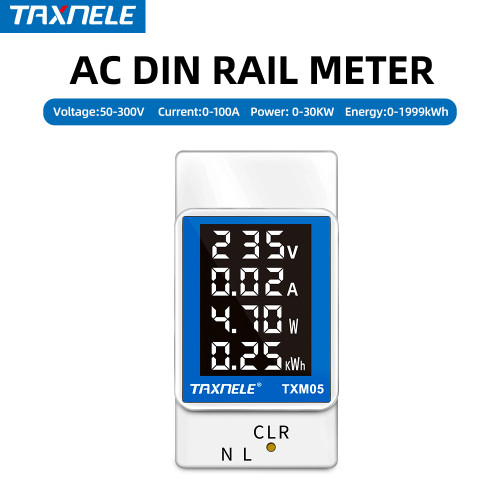

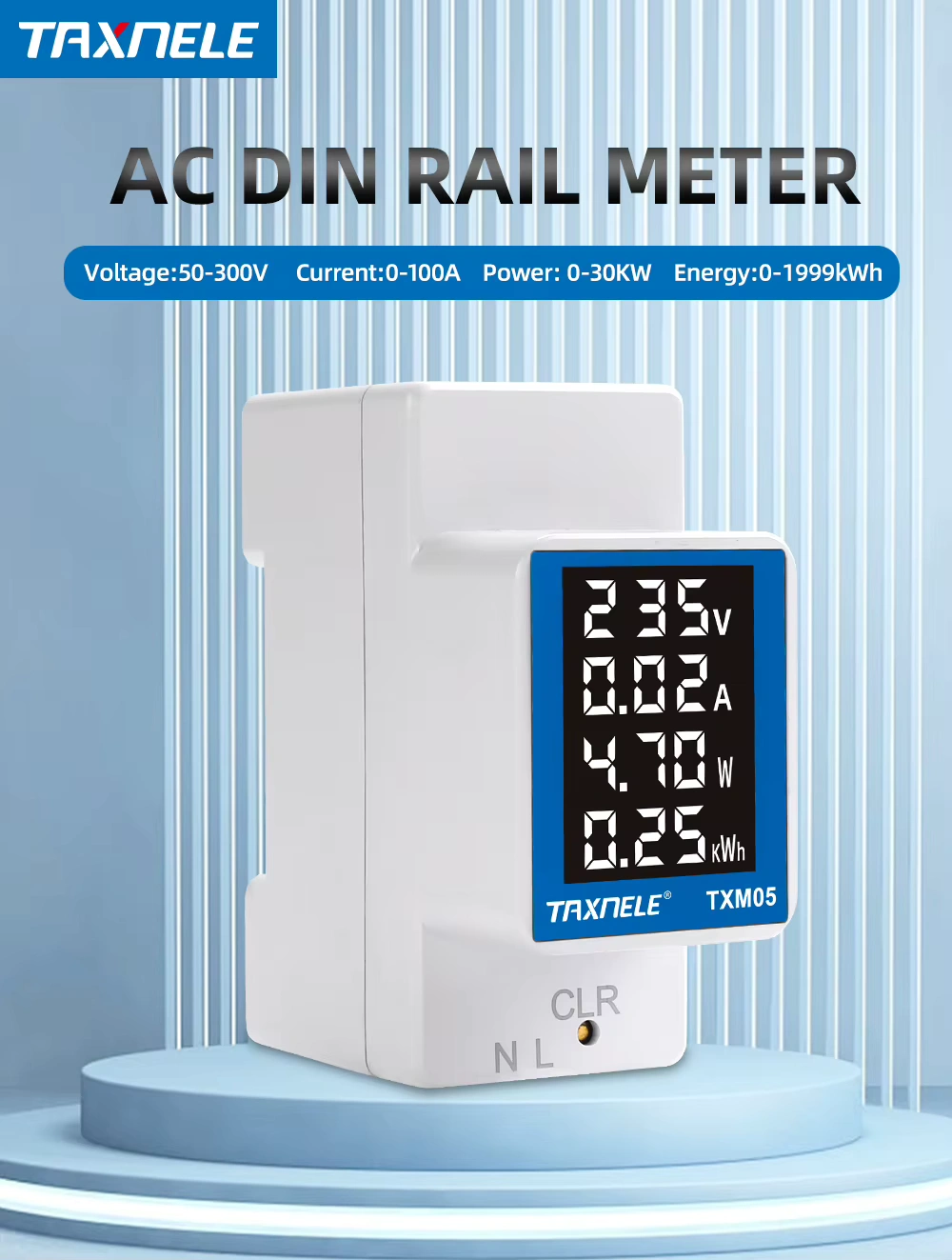

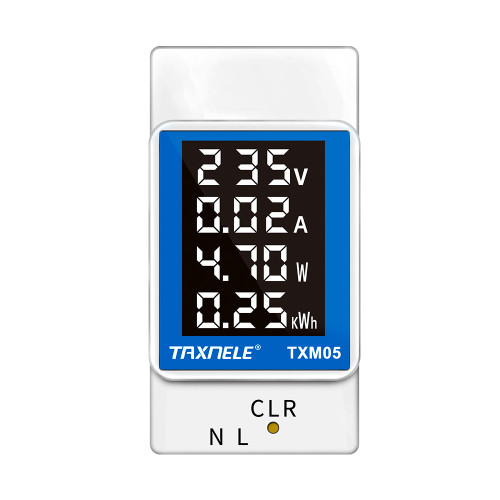

The Taxnele TXM05 is a compact 4-in-1 AC monitor designed to measure and monitor key electrical parameters in single-phase AC electrical systems. It combines voltmeter, ammeter, wattmeter and energy meter functions, allowing voltage, current, power and electrical energy consumption to be monitored in one device.

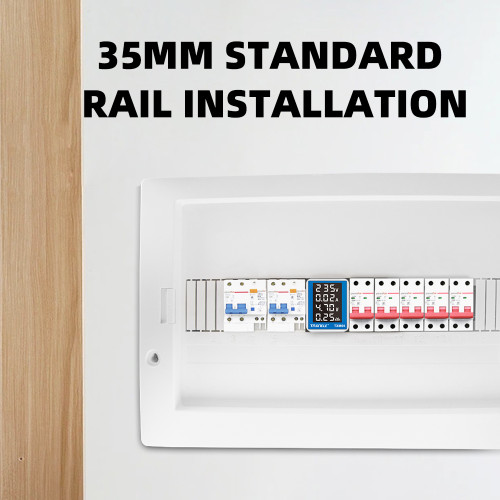

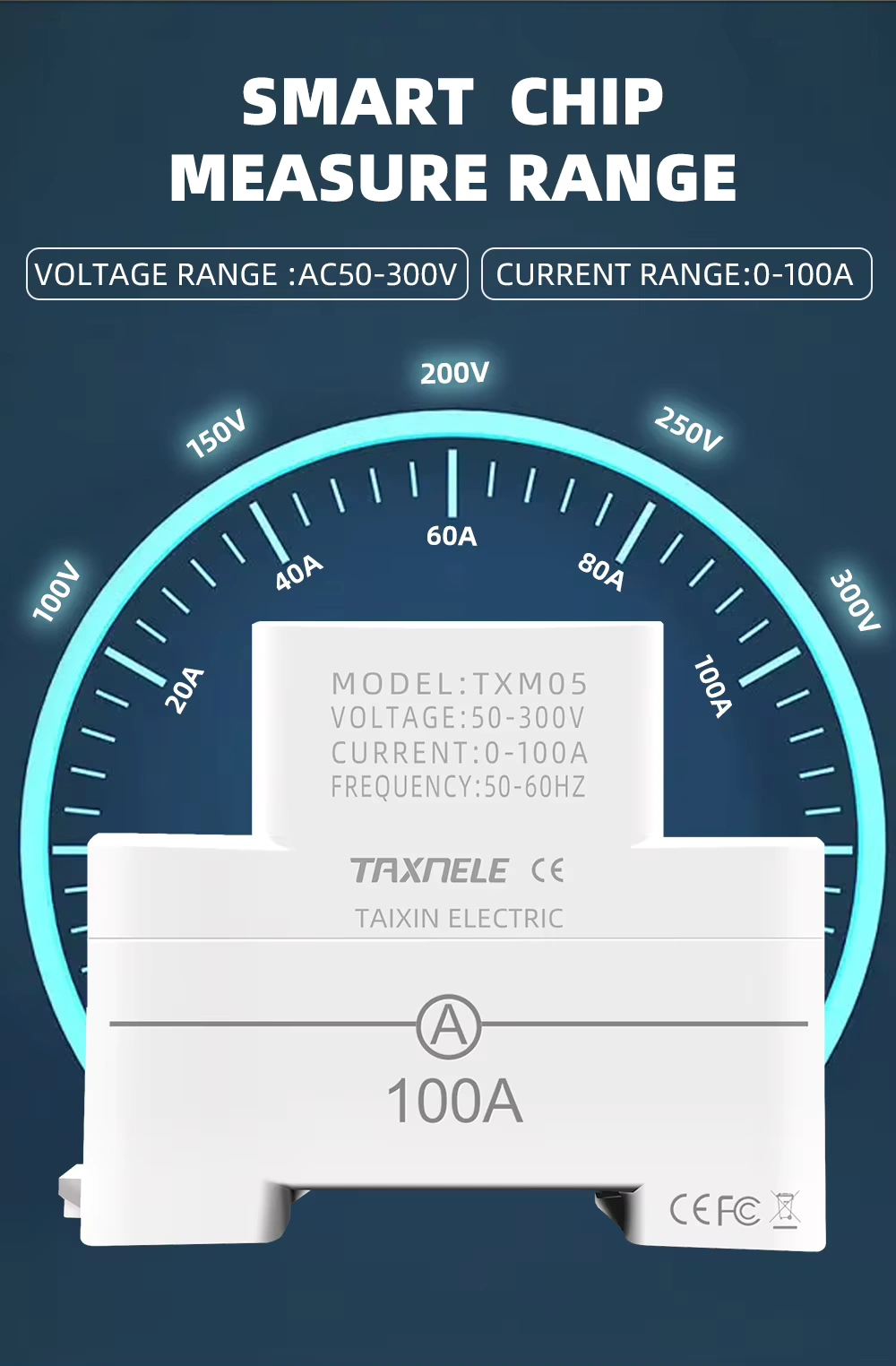

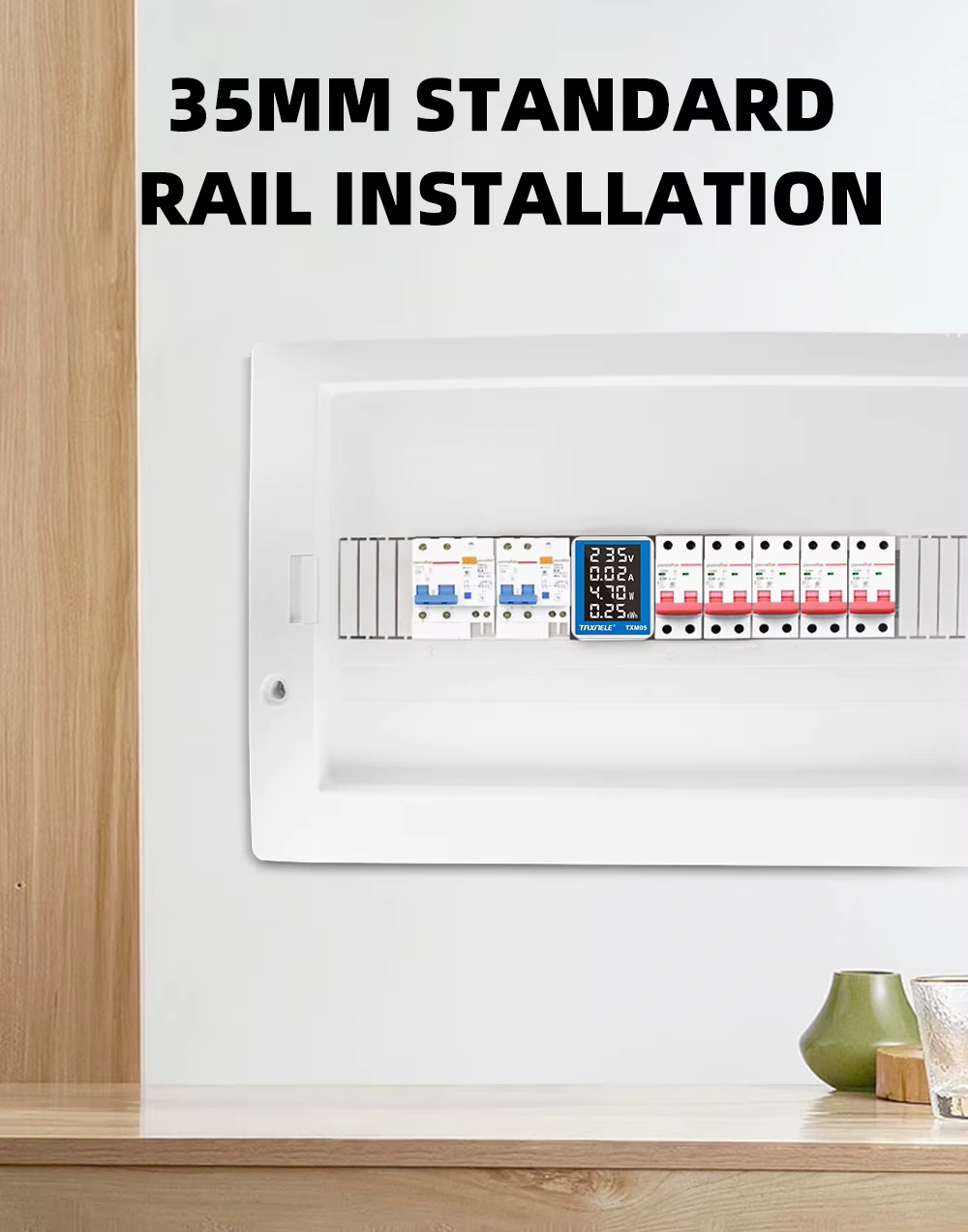

The TXM05 is designed for installation in electrical distribution panels and DIN rail systems. Its voltage measurement range is AC 50–300 V, while the current measurement range is 0–100 A. The specified measurement accuracy is ±1%. The starting measurement voltage is 50 V.

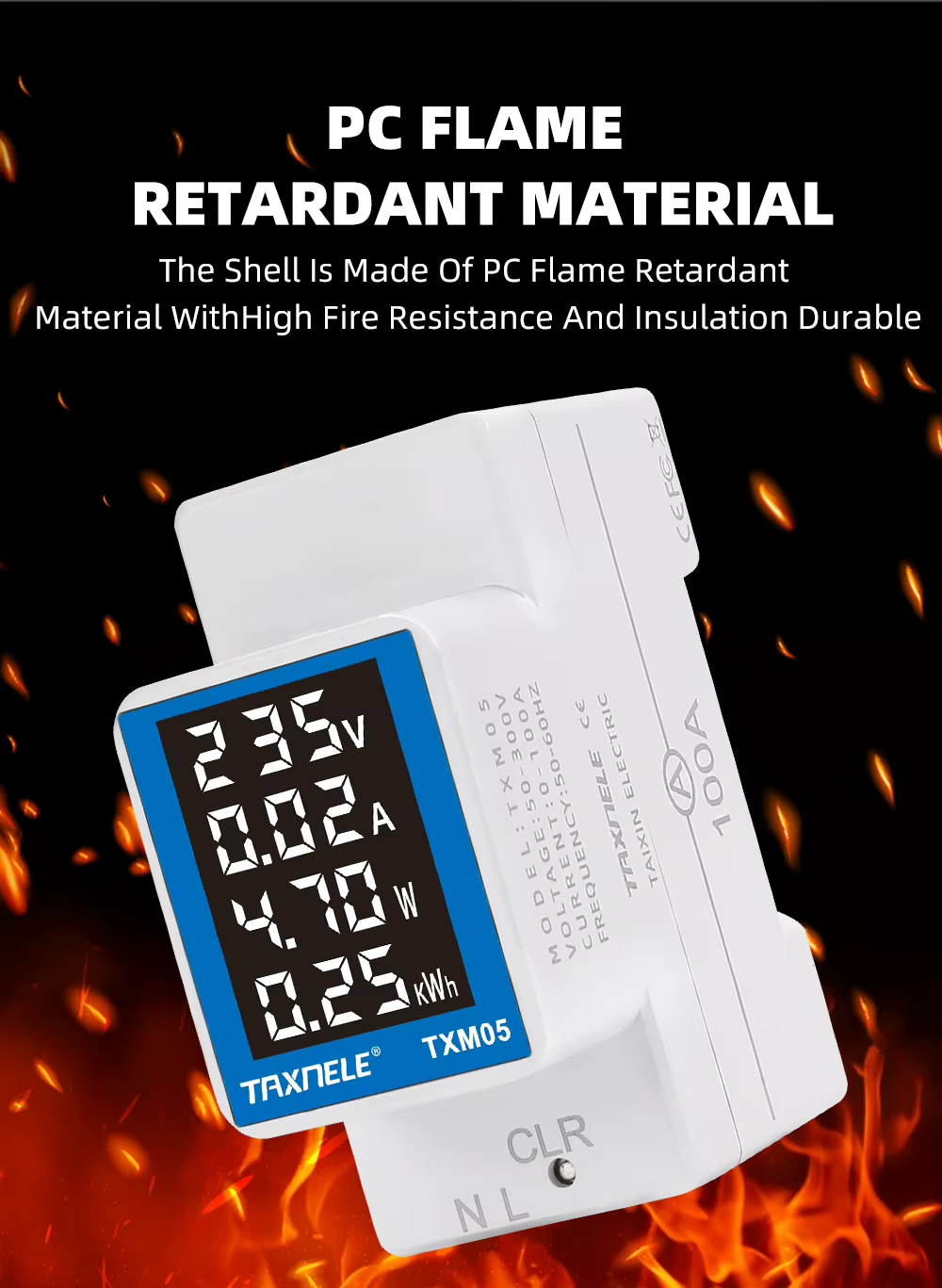

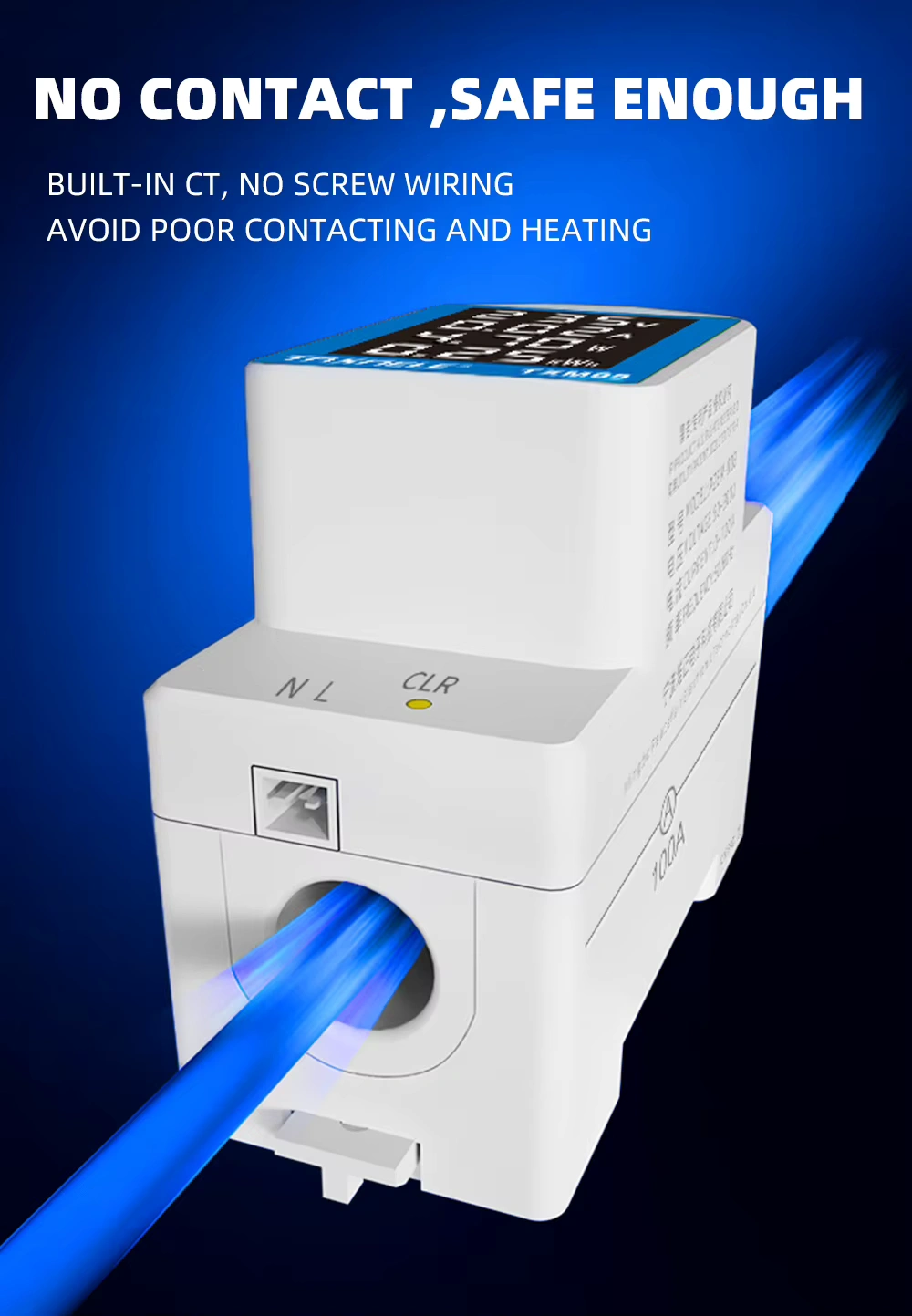

The device uses a built-in current transformer (CT) for current measurement. Its construction is designed to provide reliable connections and help reduce problems associated with poor contact and connection heating. According to the product data, the housing uses PC material with high-temperature resistance and non-flammable properties.
Key features:
- Manufacturer: Taxnele
- Model: TXM05
- Type: 4-in-1 AC measuring monitor
- Mounting: DIN rail

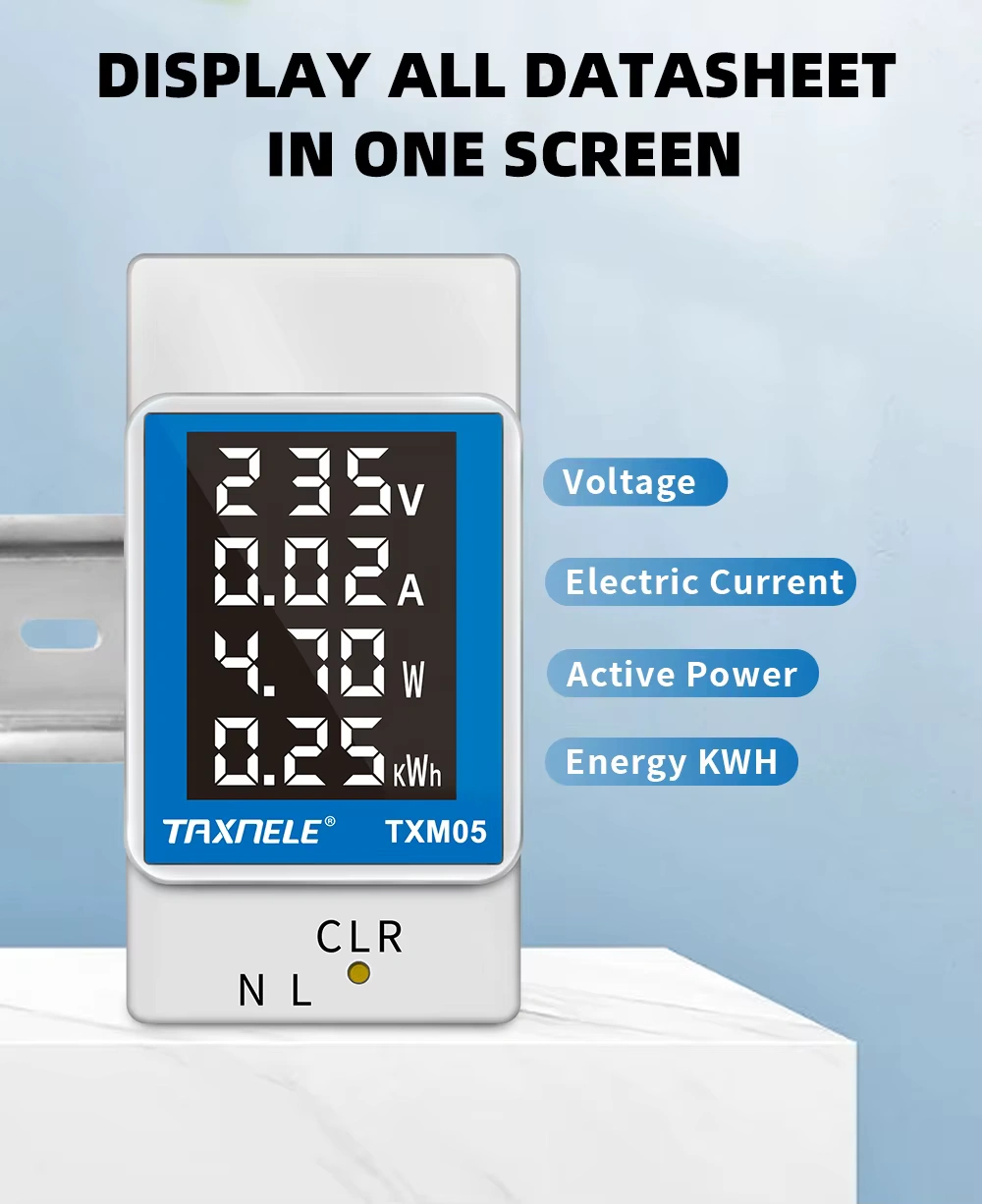

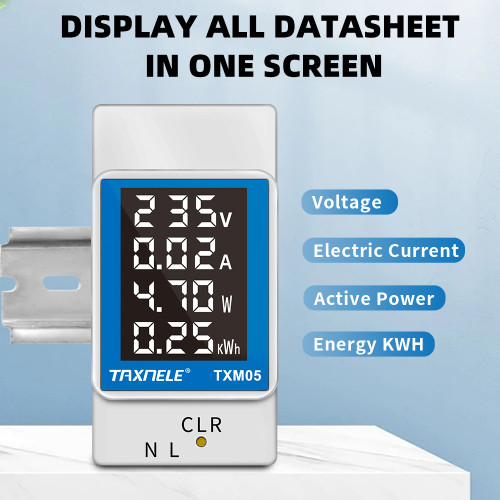

- Measured parameters: voltage, current, power and electrical energy
- Voltage measurement: AC 50–300 V
- Starting measurement voltage: 50 V
- Accuracy: ±1%
- Current measurement: 0–100 A
- Current transformer: Built-in CT
- Application: AC electrical systems
- Construction: Non-contact current measurement
- Weight: approximately 130 g
The TXM05 is suitable for monitoring electrical loads in a wide range of applications. By combining several measurement functions in one device, it can be used in electrical distribution panels, home installations, workshops, laboratory systems, machines and various DIY projects.
Voltage measurement provides convenient monitoring of AC mains parameters, while current measurement up to 100 A allows the electrical load of the connected circuit to be monitored. The power and energy measurement functions are useful for tracking consumption from different electrical loads.
Main applications:
- Electrical distribution panel monitoring
- AC voltage monitoring
- Electrical current measurement
- Power measurement
- Electrical energy consumption measurement
- Electrical load monitoring
- Residential electrical installations
- Workshops and laboratory projects
- DIY and energy monitoring systems
The Taxnele TXM05 is a practical solution for users looking for a compact DIN-rail measuring device with combined voltage, current, power and electrical energy monitoring functions.
